Aeromotive Extreme Flow EFI Fuel Pressure Regulator for Belt/Hex Drive Pumps - 30-120 PSI Adjustable, Boost Reference Return Style Fuel Regulator for EFI Systems, -12 ORB Ports - 13137
4.2 (129 items)
Limited Time Sale$54.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212489781 | Release Date | 2026/04/06 | List Price | $36.00 | Model Number | 212489781 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

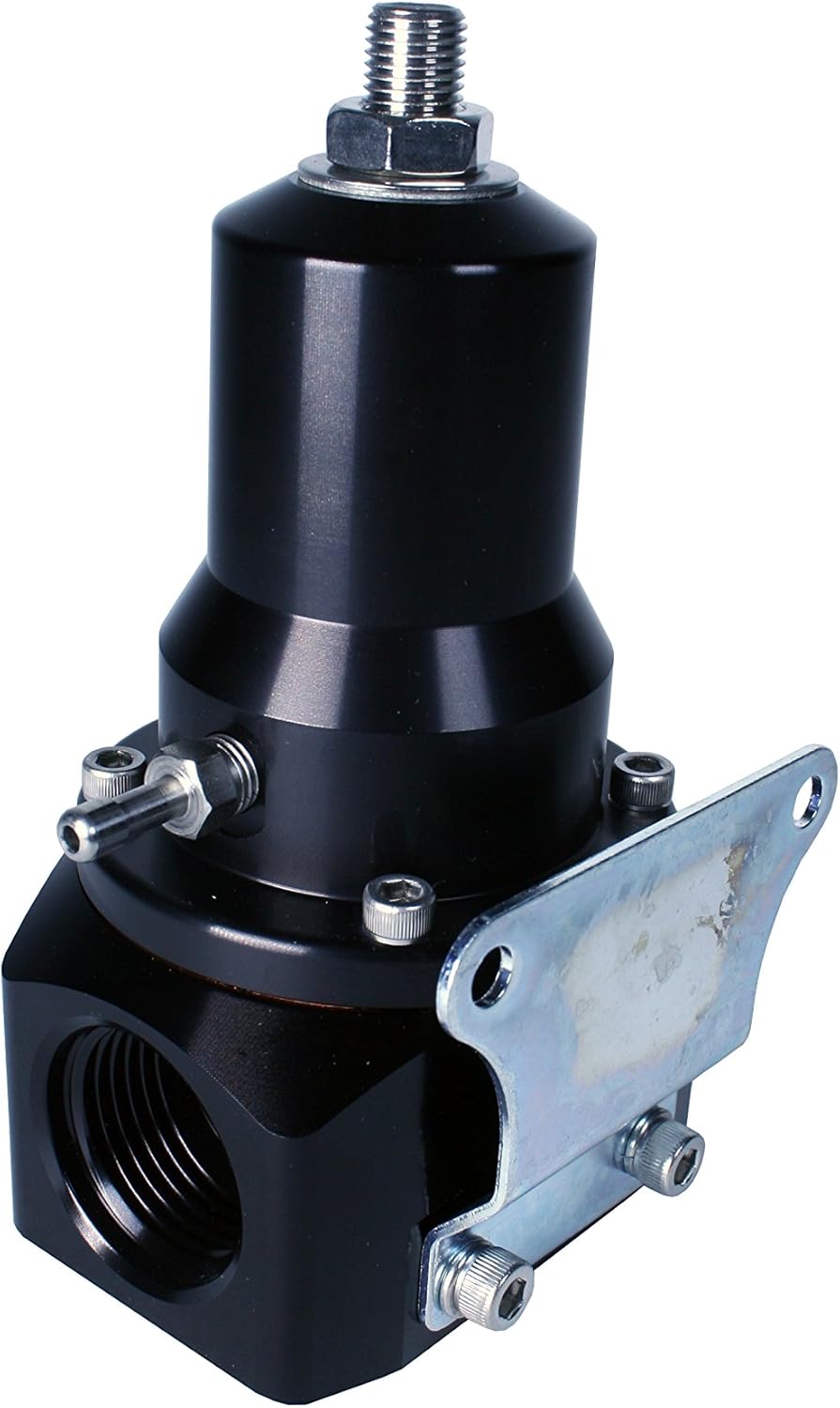

The Extreme Flow EFI Aeromotive Fuel Pressure Regulator is a high-performance fuel pressure regulator designed for use with belt or hex drive fuel pumps. Its compact, 2-port body features dual ORB-10 inlet/outlet ports and one ORB-10 return port, ensuring seamless integration into your fuel system. With a 0.500” high-flow valve/seat, this fuel pressure regulator can handle 7-32 GPM, making it ideal for high-performance applications. The regulator includes dual springs to expand the operating pressure range: a standard spring for 30-75 PSI and a high-pressure spring for 75-120 PSI. This design maintains a low profile and reduced weight while delivering precise fuel pressure control. The Extreme Flow EFI Regulator also supports vacuum and boost reference on a 1:1 ratio with PSI, making it perfect for high-performance and racing applications. Upgrade your fuel system with the Extreme Flow EFI Regulator for unmatched performance and reliability.
- EFI FUEL PRESSURE REGULATOR: Engineered for belt or hex drive fuel pumps; supports high-volume fuel systems while maintaining stable pressure. Gasoline, ethanol, alcohol & diesel compatible

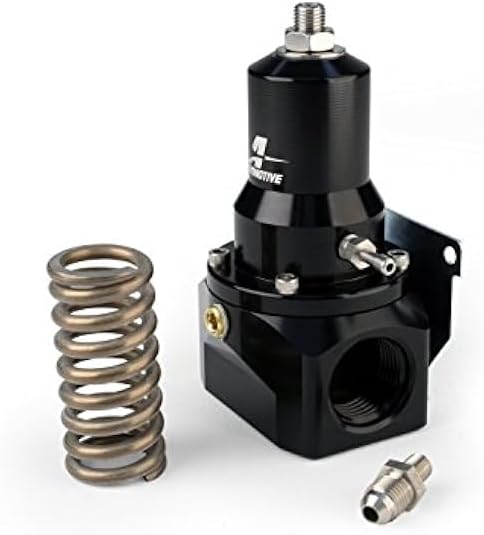

- ADJUSTABLE 30-120 PSI PRESSURE RANGE: Includes dual springs to support a wide 30-120 PSI base pressure range, allowing precise EFI fuel pressure control across racing and high-horsepower builds
- EXTREME FLOW 0.500" VALVE DESIGN: Large 0.500" valve & seat supports fuel pumps flowing 7-32 GPM, maintaining stable pressure & consistent fuel delivery for high horsepower EFI performance applications
- BOOST REFERENCE 1:1 PRESSURE CONTROL: Maintains a 1:1 vacuum and boost ratio, allowing fuel pressure to rise with boost to support consistent air-fuel ratios in forced induction engines
- HIGH FLOW -12 ORB PORT CONFIGURATION: Features dual ORB-12 inlet ports and one ORB-12 return port to support large fuel lines and high flow EFI fuel systems with minimal restriction
| UPC | 684980008609 |
|---|---|
| Size | No Size |
| Brand Name | Aeromotive |
| Unit Count | 1.0 Count |
| Valve Type | Globe Valve |
| Item Weight | 1.4 Pounds |
| Thread Size | 0.500 inches |
| Thread Type | ORB-12 |
| Manufacturer | Aeromotive |
| Model Number | 13137 |
| Material Type | Plastic |
| Connector Type | ORB-12 |
| Item Type Name | Aeromotive 13137 Regulator, Adjustable, 30-120 PSI, 500 Valve, (2) -12 inlets, (1) -12 return |
| Exterior Finish | Painted |
| Item Dimensions | 3 x 5.6 x 5.5 inches |
| Number of Ports | 3 |
| Maximum Pressure | 120 Pound per Square Inch |
| Specification Met | ORB-12 |
| Included Components | Aeromotive 13137 Regulator, Adjustable, 30-120 PSI, 500 Valve, (2) -12 inlets, (1) -12 return |
| Inlet Connection Size | 0.75 Inches |
| Inlet Connection Type | Push-In |
| Outlet Connection Size | 0.75 Inches |
| Outlet Connection Type | ORB-12 |
| Manufacturer Warranty Description | Warranty |
| Global Trade Identification Number | 00684980008609 |
